If you are having a Electric car which mean that you might go through such situation where you need Jump Start Electric Car Battery. Because Electric car fails to provide power that is required to start a car. There are many reasons such as your car charger is tactically working properly or battery dead or discharged. In such situation Deckersauto provide you solution that help you when your now-where on the road and maintain your car true value.
Recent Released: Geely SUV Battery Maintenance: Maximize Your Battery’s Lifespan
Introduction
As electric vehicles (EVs) continue to gain popularity, it’s essential for owners to understand how to handle common issues, such as a dead 12-volt battery. Unlike gasoline-powered cars, jump start electric car battery requires a different approach to avoid potential hazards and ensure safe and effective battery revival. Take a look at the ins and outs of Jump Start Electric Car Battery, including the necessary tools, step-by-step instructions, and troubleshooting tips.
How to Jump Start an EV With Healthy Battery Car Share By DeckersAuto.
If you are regular with a common car problem-solving person on your own, then this process will be an easy task for you to jump start electric car battery. It will save time and money, but you need to follow the danger point which we mentioned at the end.
EV 12v Battery Booster

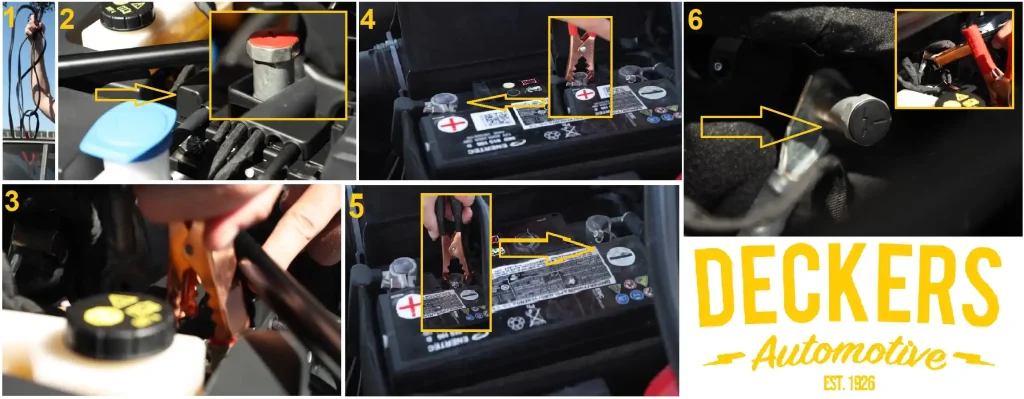

Your 12v system is run down; you need to first follow these instructions.
Step#1. Not placing a healthy battery car next to an EV car is not nice.
Step#2. Pull the parking brake so neither rolls into the other.
Step#3. Take a look around and make sure that anything that could drain your battery, such as headlights, parking lights, etc, which you need to switch off.
Step#4. Now, have jumper cables with you. Connect a red + Positive cable to the discharged battery positive terminal.
Take the positive or red cable on the other end of the jumper cable and attach it to the positive terminal on the healthy vehicle.
Step#5. Take the negative or black cable, attach it to the negative terminal on the healthy battery slide it over to the dead battery. Attach the negative cable to an open bit of metal that will serve as a ground point. (This can be an exposed bolt or actual metal on the car)
Step#6. Take a moment to double-check that all the connections are good and cables won’t slip off. Also, make sure the actual jumper cables are free of any moving parts like fans or belts when you’re using a gas-powered vehicle to jump start.
Step#7. It’s time to start the healthy vehicle.
Step#8. Now, start the EV car.
Note: Here we go. Keep the cars connected and keep both of them running for a bit to get some juice from the healthy batteries into the batteries of the previously dead car.
Step#9. At this step you need to remove the cables but in the reverse order in which you put them on there. So take off the negative from the EV car then the negative off the healthy car. Now remove the positive from the healthy vehicle and then remove the positive cable from the EV car.
Note: Once all is done then, you have to run your Electric car for at least 20 minutes. It will help to build up the charge in your 12-volt battery system.
If this process does not work, then you have to visit DeckersAuto, where our expert will examine the 12-volt system for any defects. It could be as simple as needing a new battery.
Danger To Do: Do not mess with the high-voltage battery system in your car. If you have a drained big battery, you cannot jump-start your EV by hooking it up through jumper cables to another vehicle.
Additionally, if your vehicle is connected to a charging station, unplug it from the charging station before you charge your 12-volt system.
This method can be used for the following question asked by Deckeauto viewers for ev jump pack.
Q. Can ioniq 5 jump start another car
Q. Jump start nissan leaf
How Does The Electric Car Battery System Works?

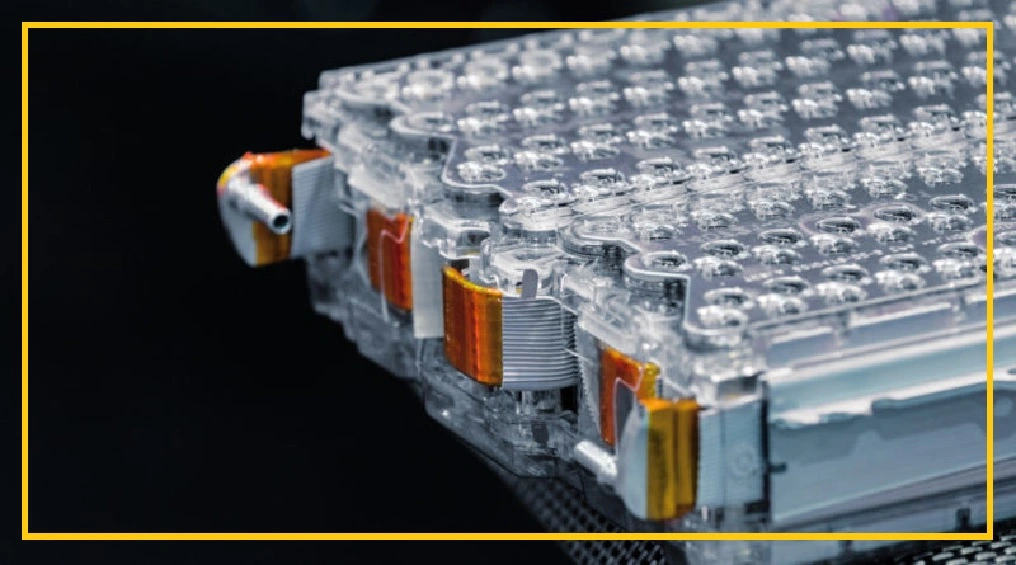

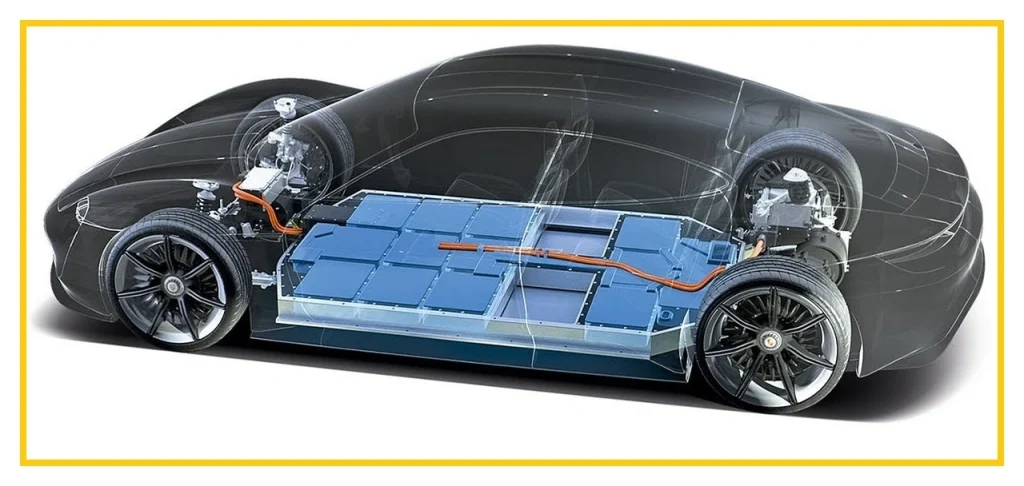

Electric cars have two distinct battery systems: a high-voltage traction battery that powers the electric motor and a conventional 12-volt auxiliary battery that operates the lights, infotainment system, and other electrical components.
While the traction battery is designed for longevity and rarely needs jump-starting, the 12-volt battery can occasionally run out of charge, just like in a conventional gasoline-powered vehicle.
Tools Needed for Jump Start Electric Car Battery
Before attempting to jump start electric car battery, it’s essential to have the right tools on hand. Here’s what you’ll need:
| Tool | Description |
| Jumper Cables | A set of heavy-duty jumper cables with insulated clamps, long enough to reach between the two vehicles. |
| Safety Gear | Protective gloves and safety glasses to shield against potential sparks or battery acid. |
| Clean Cloth or Rag | For wiping away any debris or corrosion on the battery terminals. |
| Owner’s Manual | Refer to the manufacturer’s instructions for specific jump-starting procedures. |
| Portable Battery Jump Starter (Optional) | A portable jump starter can be a convenient alternative to using another vehicle. |
How To Jump Start A Car Step-by-Step Jump-Starting Procedure
Follow these steps to safely jump start electric car battery 12-volt:
- Position the Cars: Park the vehicles close enough for the jumper cables to reach, but not touching. Engage the parking brakes on both vehicles.
- Locate the Batteries: Consult the owner’s manual to locate the 12-volt battery in the electric car. Avoid touching any high-voltage components or cables.

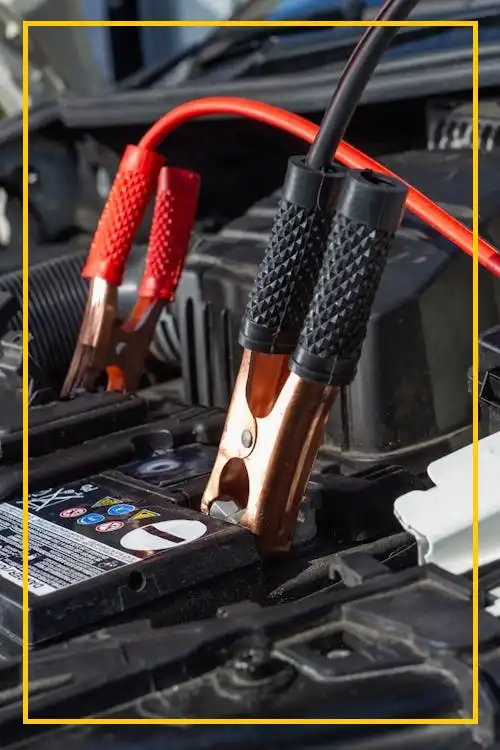

- Connect Positive Cables: Connect one end of the red (positive) jumper cable to the positive terminal on the dead battery, and the other end to the positive terminal on the good battery.
- Connect Negative Cables: Connect one end of the black (negative) jumper cable to the negative terminal on the good battery, and the other end to a metal ground point on the electric car, such as an exposed bolt or bracket (not the negative battery terminal).
- Start the Working Vehicle: Start the engine of the vehicle with the good battery and let it run for a few minutes to charge the system.
- Start the Electric Car: Try to start the electric car. If it doesn’t start immediately, wait 15 seconds and try again.
- Charge the Battery: Once the electric car is running, let it run for at least 20 minutes to help recharge the 12-volt battery.
- Disconnect Cables: Disconnect the jumper cables in reverse order (negative from the electric car, negative from the good battery, positive from the good battery, and finally positive from the electric car).
Now you know how to jump start a car when its comes to electric car (EV). To know more or need solution to troubleshoot then contact us or visit DeckersAuto for assistance.
Troubleshooting Tips
If the electric car doesn’t start after following the jump-starting procedure, try these troubleshooting steps:
- Check Connections: Ensure that all jumper cable connections are secure and properly attached to the correct terminals.
- Check Battery Voltage: Use a voltmeter to measure the voltage of the 12-volt battery. It should read at least 12V after being jump-started. If the voltage is still low, the battery may need to be replaced.
- Let It Charge Longer: Leave the electric car running for an additional 20-30 minutes to allow the 12-volt battery to charge further.
- Check for Error Codes: Use an OBD2 scanner to check for diagnostic trouble codes related to the 12-volt battery or charging system.
- Consult the Owner’s Manual: Refer to the electric car’s owner’s manual for any additional troubleshooting steps or specific jump-starting instructions.
- Seek Professional Help: If the electric car still won’t start, it’s best to have it inspected by a qualified EV technician to identify and resolve any underlying issues.
Precautions and Safety Tips
Jump-starting an electric car requires extra precautions to ensure your safety and avoid damaging the vehicle’s electrical system. Here are some important safety tips to keep in mind:
- Never attempt to jump-start an electric car using another electric vehicle, as their 12-volt systems are not designed for this.
- Avoid touching any high-voltage components or cables in the electric car, as they can carry potentially lethal magnitude of electricity.
- Always wear protective gloves and safety glasses when working with batteries to shield against sparks or battery acid.
- Ensure that the jumper cables are in good condition and have no exposed wires or damaged insulation.
- Follow the manufacturer’s instructions carefully and consult the owner’s manual for any specific procedures or warnings.
DeckersAuto Suggest
Jump Start Electric Car Battery may seem daunting, but with the right tools, knowledge, and precautions, it can be a straightforward process. By following the step-by-step instructions, troubleshooting tips, and safety guidelines outlined in this guide, you can revive your electric car’s 12-volt battery and get back on the road safely.
If you encounter any issues or uncertainties, it’s always best to seek professional assistance from a qualified EV technician to avoid potential hazards and ensure the longevity of your electric vehicle.
